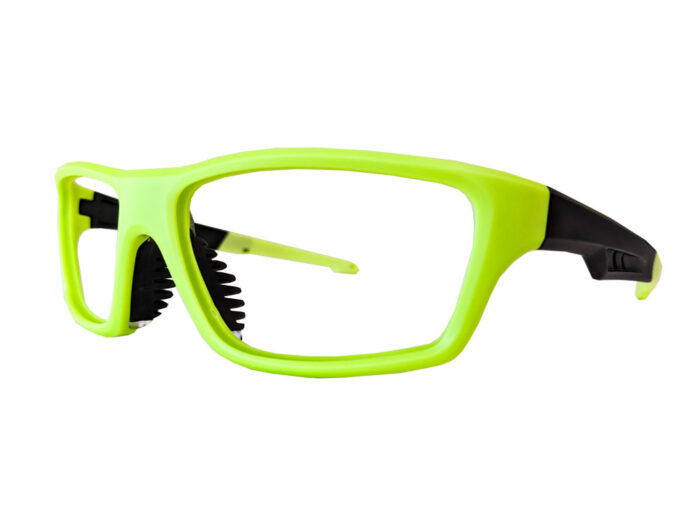

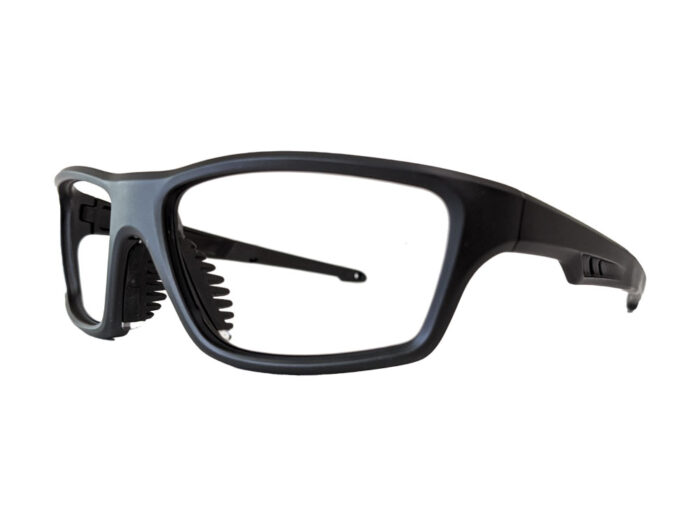

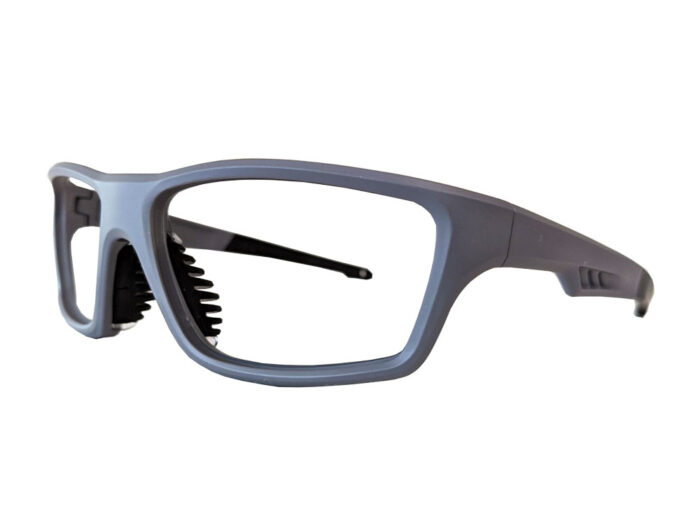

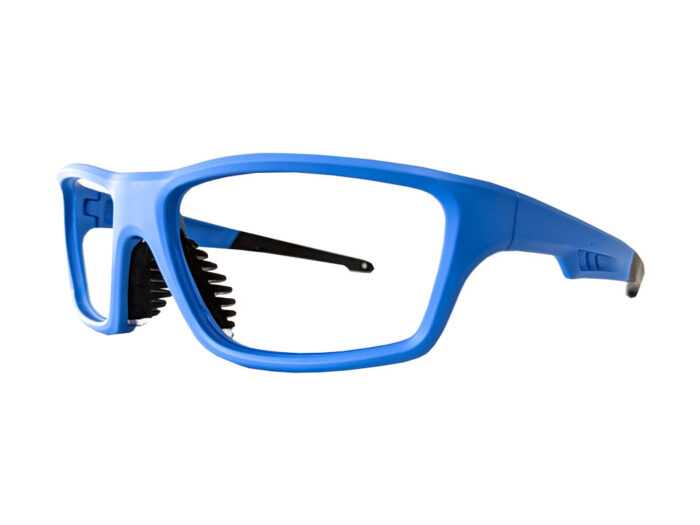

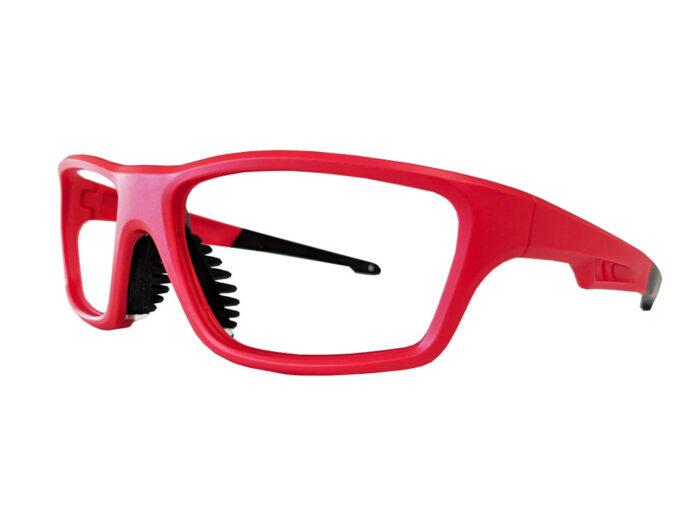

The Razer Lead Glasses boast a sleek design while being a lightweight and durable frame. These protective eyewear feature a ventilated nose bridge, rubberized temples, and wide-angle lenses which maximize comfort and protection from x-ray. The modern style and use of light-weight materials make the Razer an excellent choice for long-procedures.
FEATURES
- Removable 0.50mm LE side shield insert included
- Rubberized, ventilated nose bridge for maximum comfort
- Rubberized temples for grip
- Lightweight frame
RAZER EYEWEAR CHARACTERISTICS
- Frame Type: Wraparound
- Front Lens: 0.75mm Pb Glass
- Weight: 62.5g
- Frame Size: 58-17-135
- Frame Material: Polycarbonate
- Side Shields: 0.50mm Pb Lead Strips included
- CE Certified: Yes
- Color Options: Matte Green, Matte Black, Matte Gray, Matte Blue, Matte Red
- Rx Options: Single Version, Bifocal, Progressive
- Min PD Value: 62
LENS ATTENUATION
| Lens Type | Lead Equivalence | Attenuation @ 100kVp | Attenuation @ 150kVp |
| 4B Semi Finished Lens - Thin |
0.75mm Pb |
98.3% |
96.4% |
| 4B Semi Finished Lens - Thick | 1.00mm Pb | 99.1% | 98.2% |
| 6B Semi Finished Lens - Thin | 1.05mm Pb | 99.2% | 98.6% |
| 6B Semi Finished Lens - Thick | 1.35mm Pb | 99.5% | 99.0% |
COMPLIANCE STANDARDS
Intended Use: Lead Glasses, Goggles, and fitovers ("Leaded Eyewear") are intended to be. worn by persons who are present in the examination of operating room during medical procedures requiring the use of x-ray/fluoroscopy. They are intended primarily to protect the eyes of the operator from x-ray radiation.
EN 61331-1:2014: (EU) Protective devices against diagnostic Medical X-ray radiation. (Determination of attenuation properties of material)
EN 61331-3:2014: (EU) Protective devices against diagnostic Medical X-ray radiation Part 3: Protective clothing, Eyewear and Protective Patient shields.
ASTM 2547-18: (USA) Standard test method for determining the attenuation properties in a. primary x-ray beam of materials used against radiation.
Protection Options: Lead (Pb) equivalent material (mm Pb) ≥ 0.50mm LE at 150kV
- PL75: Plano Lens 0.75mm (± 0.05) Pb equiv.
- PL50: Plano Lens 0.50mm (± 0.05) Pb equiv.
- PL75: Prescription Lens 0.75mm (± 0.05) Pb equiv.
- PL50: Prescription Lens 0.50mm (± 0.05) Pb equiv.
- SS: Lead strip side shield 0.50mm (± 0.05) Pb equiv.
- SS50: Lead strip side shield 0.50mm (± 0.05) Pb equiv.
- SS75: Lead strip side shield 0.75mm (± 0.05) Pb equiv.
MAINTAINING YOUR EYEWEAR
Storage: Leaded Eyewear should be stored in a protective case in normal room temperature and low humidity conditions when not in use.
Maintenance: Examine Leaded Eyewear frequently and before each use. Cease use and replace or repair immediately if the eyewear are chipped, pitted, or damaged. You may tighten screws/hinges if they loosen. Cleaning the Frame: use any standard eyewear cleaning cloth. Diluted soap and water usually will not discolor or damage the frame. Cleaning the Lenses: Never use ammonia or chlorine-based cleaners. Use of alcohol is permitted for lenses that do not posses an anti-reflective (A/R) coat. To clean A/R coat lenses, soak in diluted soap and water. DO NOT allow water to remain or dry onto the lenses as this can discolor/damage the lens. Wipe and dry using a Protech cleaning cloth or equivalent soft, lint free cloth.
